Build a dashboard to visualize data

In this final step, we will visualize some of the data we have been modeling in a dashboard using Evidence connected to our model assets.

Step 1: Add the Evidence project​

First, we will clone an Evidence project that is already configured to work with the data we have modeled with dbt:

git clone --depth=1 https://github.com/dagster-io/jaffle-dashboard.git dashboard && rm -rf dashboard/.git

There will now be a directory dashboard within the root of the project.

.
├── pyproject.toml
├── dashboard # Evidence project
├── src
├── tests
├── transform
└── uv.lock

Change into that directory and install the necessary packages with npm:

cd dashboard && npm install

Step 2: Scaffold the Evidence component definition​

Next, we will need to install Dagster's Evidence integration:

Install the required dependencies:

uv add dagster-evidence

Now we can scaffold Evidence with dg:

dg scaffold defs dagster_evidence.EvidenceProject dashboard
Creating a component at <YOUR PATH>/etl-tutorial/src/etl_tutorial/defs/dashboard.

This will add the directory dashboard to the etl_tutorial module:

src
└── etl_tutorial
    └── defs
        └── dashboard
            └── defs.yaml

Step 3: Configure the Evidence defs.yaml​

Unlike the other components we used, which generated individual assets for each model in our project, the Evidence component will register a single asset for the entire Evidence deployment. This asset will build all the sources and dashboards within our Evidence project.

However, we can still configure our Evidence component to be dependent on multiple upstream assets by setting the deps value within the attributes key of the Evidence component defs.yaml file:

src/etl_tutorial/defs/dashboard/defs.yaml
type: dagster_evidence.EvidenceProject

attributes:
  project_path: ../../../../dashboard
  asset:
    key: dashboard
    deps:
      - target/main/orders
      - target/main/customers
  deploy_command: 'echo "Dashboard built at $EVIDENCE_BUILD_PATH"'

Step 4: Execute the Evidence asset​

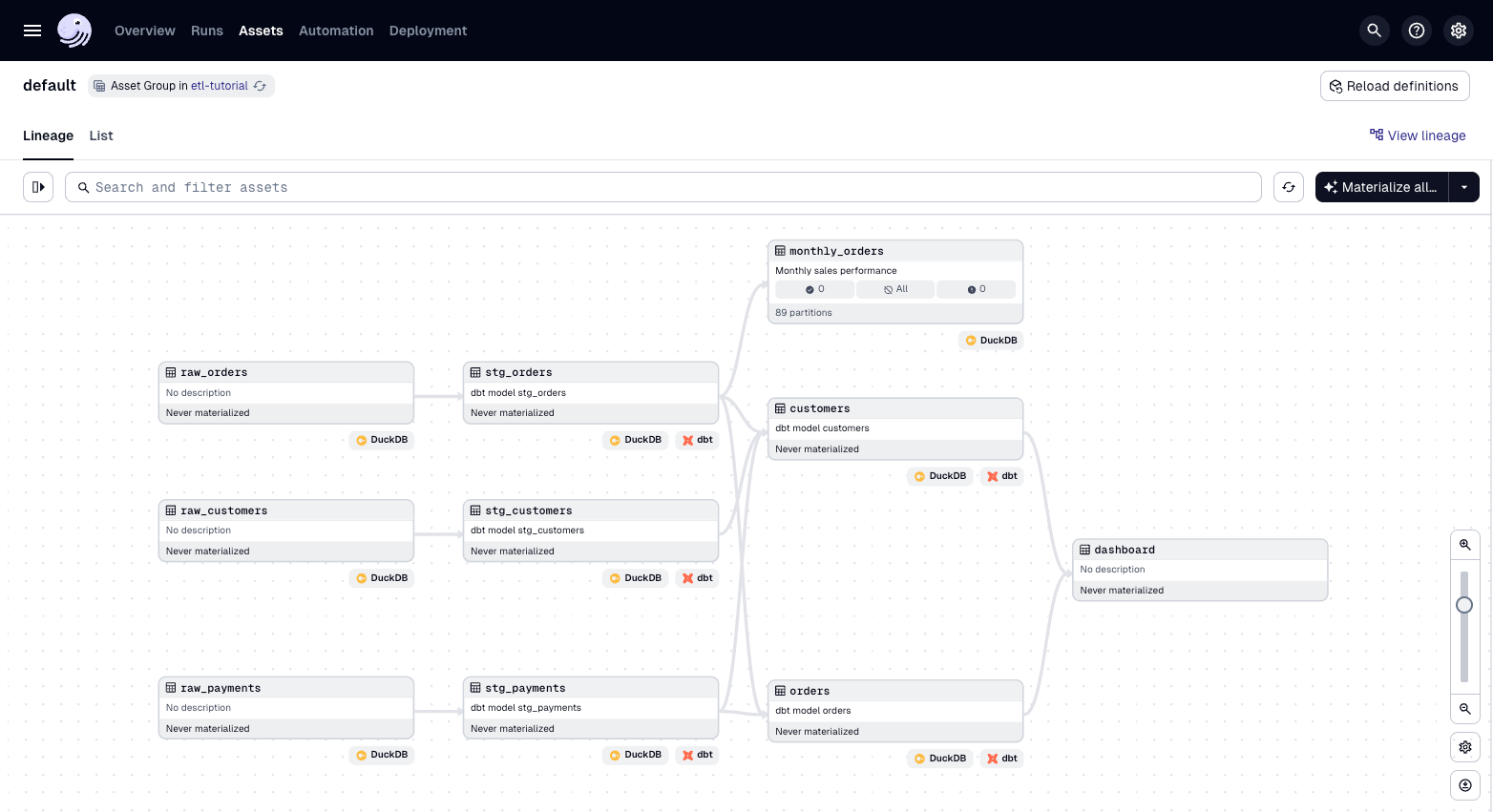

With the Evidence component configured, our assets graph should look like this:

2048 resolution

You can now execute the Evidence asset and view the output:

  1. Reload your Definitions.

  2. Execute the dashboard asset (assuming the upstream assets have been materialized).

  3. After the dashboard asset has successfully materialized, on the command line, execute the following to run the Evidence server:

    cd dashboard/build && python -m http.server

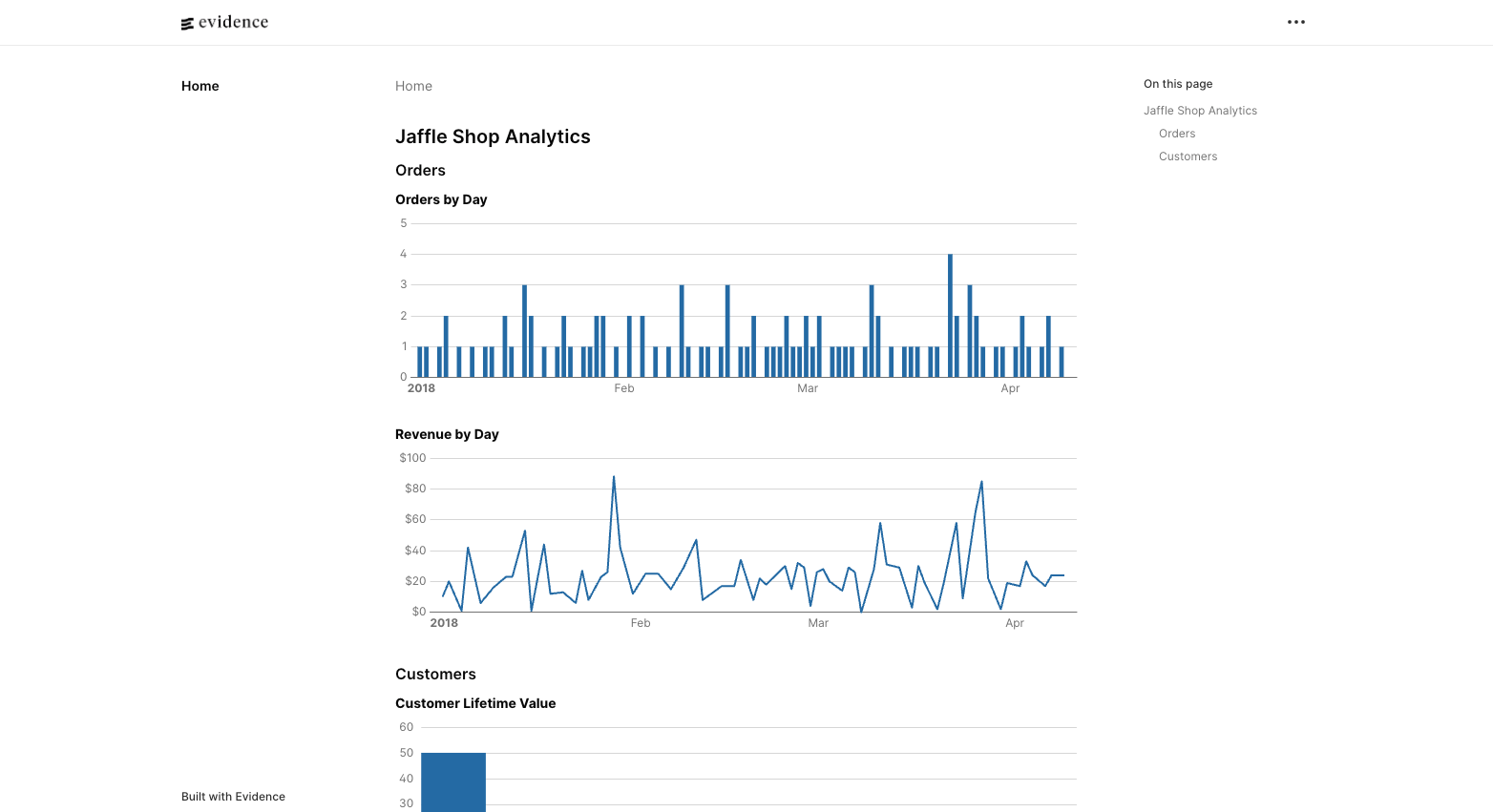

  4. Navigate to the dashboard at http://localhost:8000/:

    2048 resolution

Summary​

Here is the final structure of our etl_tutorial project:

src
└── etl_tutorial
    ├── __init__.py
    ├── definitions.py
    └── defs
        ├── __init__.py
        ├── assets.py
        ├── dashboard
        │   └── defs.yaml
        ├── resources.py
        └── transform
            └── defs.yaml

Congratulations! You've just built a fully functional, end-to-end data platform—one that seamlessly handles everything from raw data ingestion to transformation, modeling, and even downstream visualization. This is no small feat! You've laid the foundation for a scalable, maintainable, and observable data ecosystem using modern tools and best practices.
